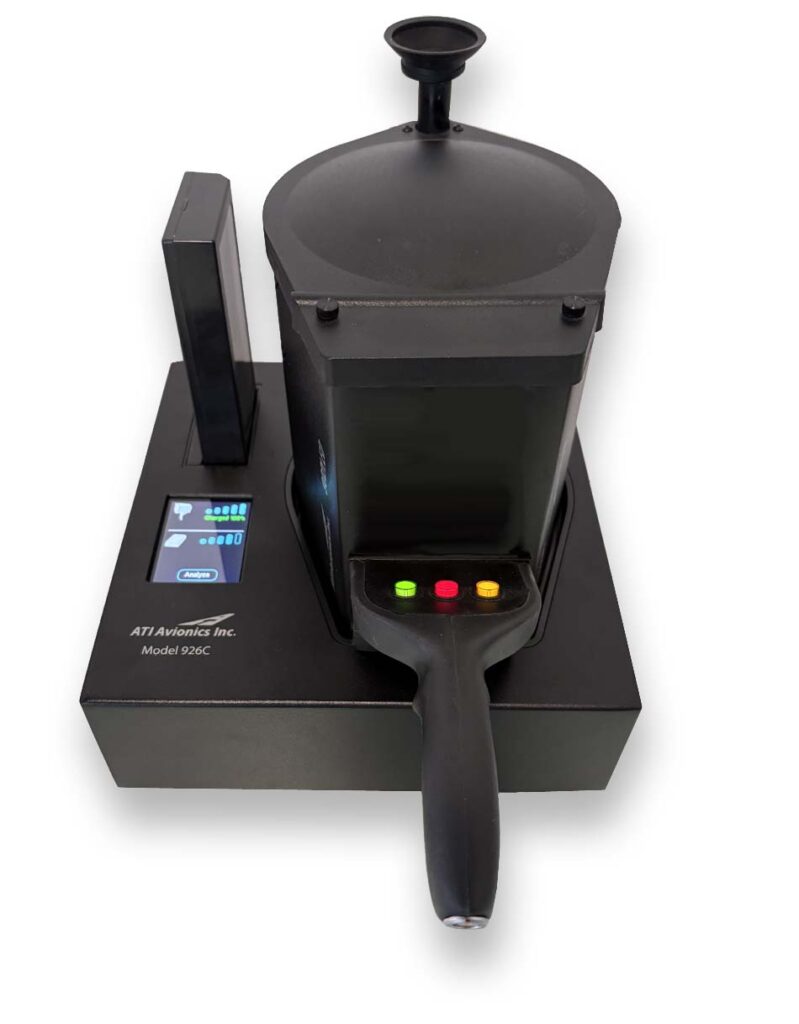

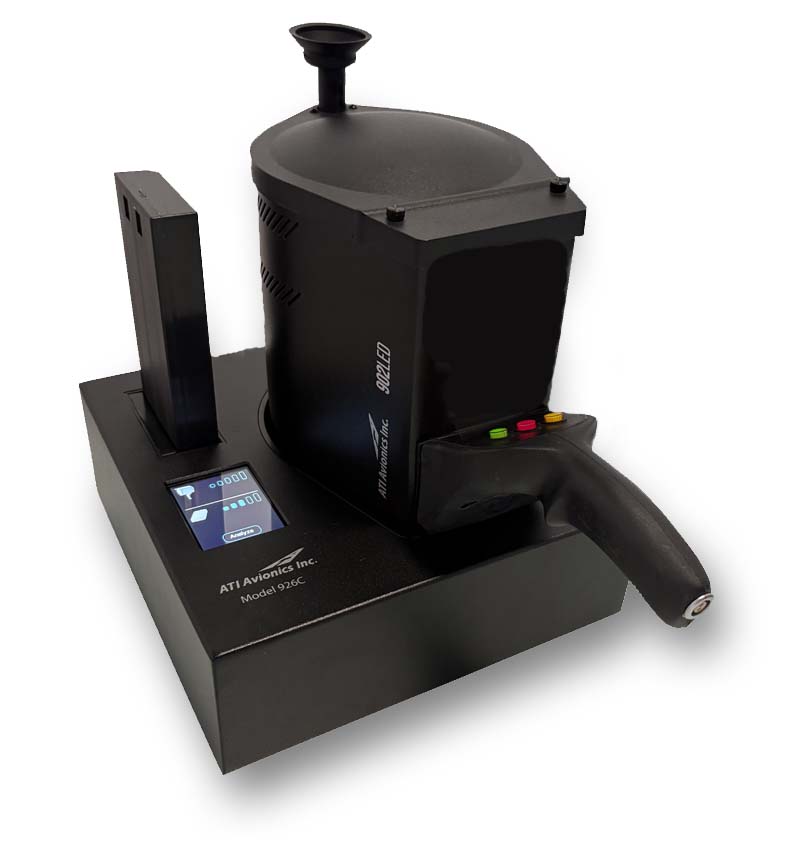

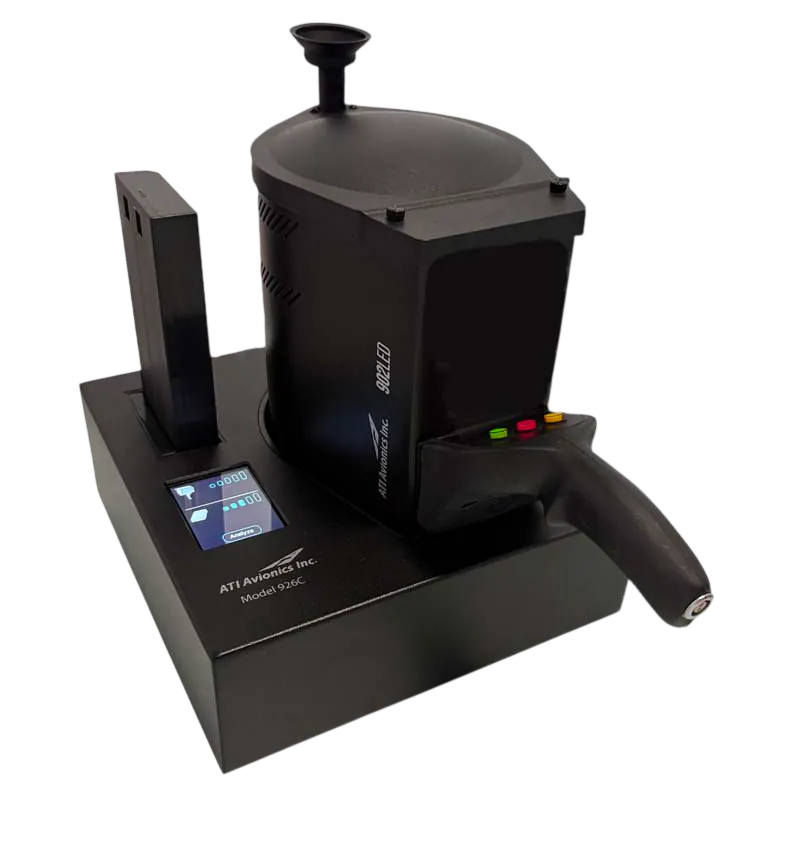

— Signal Light Gun Model 902 - Charger Model 926C
The all-new 902 LED signal light gun, paired with the latest model 926C, is the newest addition to our line of products. This combination offers upgraded technology and enhanced visibility range.
Light gun signals are a backup communication method mandated by aviation authorities (such as the FAA and ICAO). Familiarity with these standardized signals is an essential part of safe airport operations.
- Portable, Handheld, Ergonomic Design: Lightweight and easy to handle, providing a comfortable one-handed grip.
- High-Powered LEDs with Color Selection: Equipped with powerful LEDs and a simple push-button activation for easy color selection.
- Cordless, Battery-Operated with 24-Hour Operation: Cordless unrestricted mobility for easy continuous operation.
- Sight Scope with Fiber Optic Relay: The fiber optic relay ensures accurate color selection, while the sight scope ensures precise aiming and enhanced target visibility.
- Smart-Charger Base with LCD Touch Screen: Charges and analyzes batteries, offering real-time readings and status updates.
- Dual Charging Slots: Charge two batteries simultaneously — one in the spare battery socket and one inside the signal light gun — providing uninterrupted power.
- Sustainable, Reliable Ni-MH Battery: Powered by a durable, eco-friendly Ni-MH battery for consistent performance and long-lasting reliability.
LED Signal Light Gun Model 902
VISIBILITY RANGE
Over 9km/4.8nm under clear daytime conditions
LIGHT COLOURS
Red, Green, and White
(standard aviation signalling colours)
LIGHT INTENSITY
>200,000 candelas at light beam centre
WEIGHT
1.90 kg/4.18lbs. including battery
1.63kg/3.6lbs. using the auxiliary power cable (battery removed)
LIGHT CONTROL
Intermittent or continuous operation activated by colour-coded, back-lit push buttons
POWER
3.6V, 3Ah, Ni-MH rechargeable battery or external power supply 12V, DC-2A adapter
LIGHT SOURCE
LED – lifespan approx. 60,000 hours

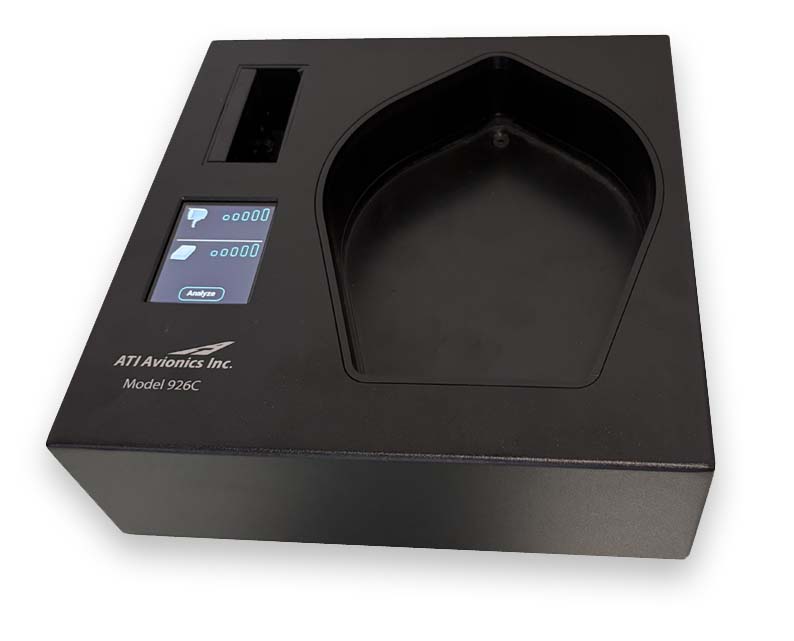

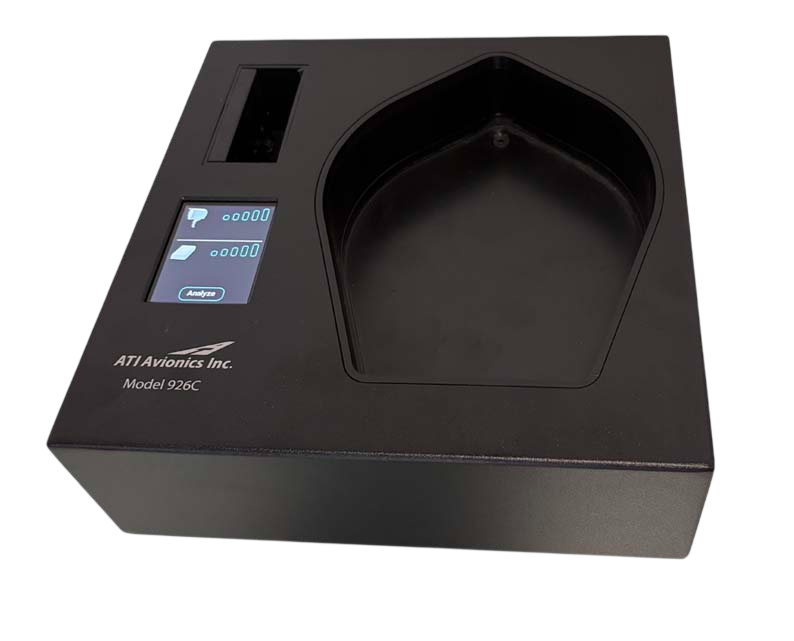

CHARGER MODEL 926C
POWER
External Power supply
Input: 100 to 240 VAC, 50-60 Hz 1.0A
Output: 24 Vcc, 1.5A
SIZE
Width: 10″ (25.4 cm)
Depth: 10″ (25.4 cm)
Height: 3 5/8″ (9.21 cm)
WEIGHT
5.73 lbs (2.6kg)
BATTERY TYPE
3.6 V, 3Ah, Nickel Metal Hydride (Ni-MH)
CHARGE TIME
Approximately 2 hours
OPERATION
Charge is controlled by microcontroller
